Sterile Water Distribution Loop (SWDL)

Sterile Water distribution loop (SWDL)

Heat Disinfection & Distribution Loop

Sterile Water Distribution Loop (SWDL)

The Sterile Water Distribution Loop System is an integrated heat disinfection system for the distribution loop with a significant advantage: the ability to adjust operation for each day of the week, heating intervals, holding times and disinfection temperatures. As a result, the disinfection is controlled, recorded & data stored for traceability.

SWDL Systems are designed specifically for reprocessing Reusable Medical Devices (RMD) in accordance with AS 5369 standards, ensuring the highest level of sterilization for surgery, procedure, and operating rooms & for Dialysis Centres.

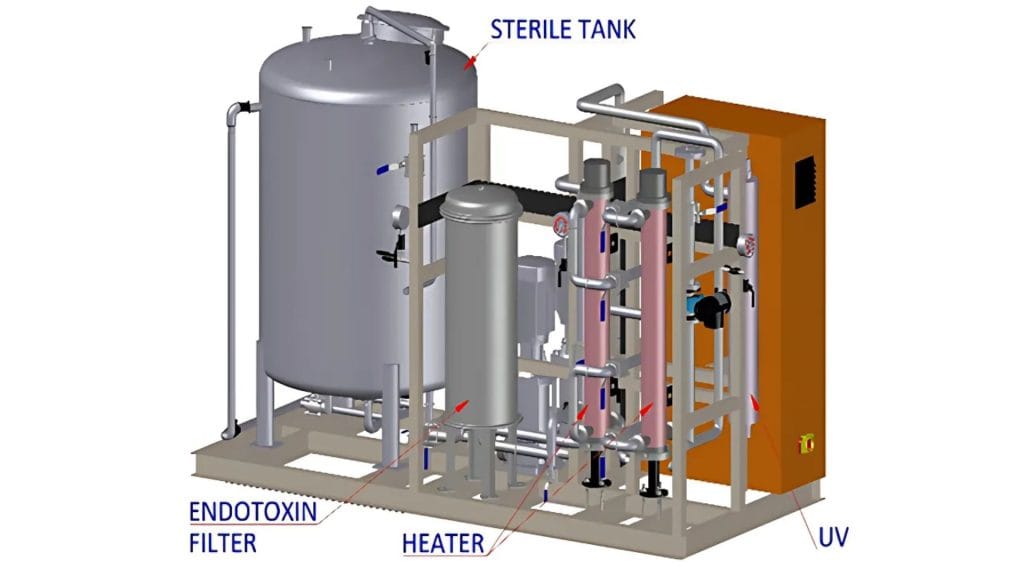

What’s in our SWDL System?

Models and Capacities

Models	SWDL-250	SWDL-500	SWDL-1000	SWDL-1800
Pump motor (kW)	1.5	2.2	4	5.5
Flowrate @ 5 bar (m3/hr)	2.5	5	10	18
Heater (kW) each	5	10	20	25
Time for Temp. increase 25-89 C (hr)	2	2	2	3
UV	LR5-355-HW	LR5-355-HW	LR5-855-HW	LR5-1405-HW
Edotoxin Filter.	20" x 3R	20" x 5R	20" x 7R	20" x 12R
Tank Vol (L)	250	500	1000	2000
Power (kW)	10-25	20-35	30-45	35-60
Dimensions (m) L x W x H	2.5 x 1.2 x 2.2	2.7 x 1.4 x 2.2	2.9 x 1.4 x 2.2	4.2 x 1.3 x 2.2

SWDL-250

2.5 m³/h for country hospitals with less than 100 beds.
Supporting 1 to 2 washer disinfectors.

Enquire

SWDL-500

5 m³/h for small hospitals with 100-200 beds.
Supporting 2 to 4 washer disinfectors.

Enquire

SWDL-1000

10 m³/h for medium city hospitals with 200-600 beds.
Supporting 4 to 8 washer disinfectors.

Enquire

SWDL-1800

18 m³/h for large city hospitals with 600-1000 beds.
Supporting 8 to 12 washer disinfectors.

Enquire

TW Sterile Water Systems

Comprehensive Design

All TW SWDL systems supply loop water at temperatures >60°C, suitable for direct sterilization by most washer disinfectors using water or steam.

Data Recording & Traceability

Temperature and electrical conductivity are constantly measured, recorded, and stored in the system drive & heat sterilization events and times are also recorded.

Advanced Instrumentation

Equipped with advanced digital instrumentation, PLC-based HMI operation, and web monitoring for remote access.

Compliance

Designed and manufactured for reprocessing RMDs to AS 5369 standards or their equivalents.

Why Choose Us?

Fastest Delivery

Our systems are pre-engineered for compliance ; hence we can give you the fastest delivery when you order from the standard range- giving you unmatched speed in delivery, validation & optimization.

Quality and Value
Optimization

Experience high quality and compliance at a competitive cost. Our Sterile Water Supply & Distribution Loop systems are accessible to all healthcare providers in various capacities to suit different needs.

Localized Support

We give you direct local support in the countries we operate or thru our qualified partners where we do not have direct presence. From space planning right thru to T&C and O&M, our teams will work with you giving you the service support needed.

AS 5369 Compliance

Tranzform Water's products are designed specifically for reprocessing Reusable Medical Devices (RMD) in accordance with AS 5369 standards, ensuring the highest level of sterilization for surgery, procedure, and operating rooms.
